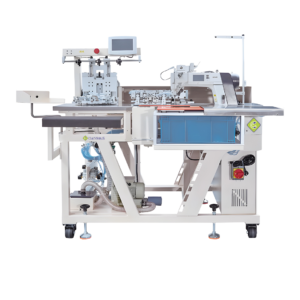

Automatic Pocket Setter
The CNS-SAS-2800-311D Automatic Pocket Setter is a fully programmable unit designed for jeans and pants. Featuring quick jig-change technology, it saves time while ensuring consistent sewing quality. Its pre-loosen function improves pocket quality after washing, while optional corner reinforcement adds durability. Powered by Brother sewing heads and AC Delta servo motors, this machine guarantees accuracy, stability, and efficiency in both mass and small-batch production.
Key Features
- Quick jig-change system for flexibility
- Pre-loosen function for improved wash quality
- Optional pocket corner reinforcement
- Brother 311 head for stability
- AC Delta servo motor for precision transport
Technical Description
- Sewing Speed: 2700 rpm (Brother 311), 4000 rpm (Brother 7300)
- Sewing Range: 280 × 260 mm
- Stitch Length: 3.5 mm
- Application: Stretch, medium, and heavy-duty fabrics
- Output: 1920 pockets per 8 hours
- Power: 220V, 50/60Hz
- Gross Weight: 460kg/430kg
